| • All Chinese color touch programming interface is easy to learn
• CNC 4 Axis servo motor transmission system.
• Password function, prevent program changed by accident.
• Unique winding jig design, easy to change the jig.
• Simple structure, easy to maintenance.
• Precise tension control.
• Auto wire assortment, no residual wire leaving.
• High-level language command to edit program.
• Auto loading & unloading function (Optional)
• Fine wire twisting function (Optional)
• Pneumatic cutter device (Optional)
• Package tape mechanism (optional)
•Customizable 4-24 axis automatic winding machine
•Two wire alternate automatic winding（Third wire clamping device）
|
Name type
|
DYA-608
8 axis automatic winding
|
DYA-612
12 axis automatic winding
|
DYA-616
16 axis automatic winding
|
|
Winding Spindle
|
8
|
12
|
16
|
|
spindle distance
|
42mm / 65mm / 77mm
|
60mm / 78mm
|
48mm / 60mm
|
|
Winding Speed
|
11000 / 6000rpm
|
13000rpm
|
13000rpm
|
|
AC servo motor
|
Spindle:750W Xaxis:400W ，Yaxis:400W， Zaxis:400W
|
Spindle:1500W Xaxis:400W ，Yaxis:400W， Zaxis:400W
|
Spindle:2200W Xaxis:400W ，Yaxis:400W， Zaxis:400W
|
|
Spindle Angle
|
360∘/ turn，Setting unit = 0.1∘
|
|
Stop Accuracy
|
0.5
|
|
Wire Size
|
0.02mm-0.6mm
|
0.02mm-0.4mm
|
0.02mm-（0.4）0.6mm
|
|
Max. Winding Diameter
|
32mm / 55mm / 67mm
|
50mm / 68mm
|
38mm / 50mm
|
|
Max. Spread Width
|
70mm
|
|
Nozzle Move Distance
|
X Axis 80mm, Moving unit = 0.01mm; Y Axis 80mm, Moving unit = 0.01mm; Z Axis 60mm, Moving unit = 0.01mm
|
|
Wrapping speed
|
250mm/sec
|
|
Wrapping Angle
|
0° ,90°,120°
|
|
Wrapping speed
|
Max 150 rpm
|
|
Control System
|
CNC 4 Axis AC servo motor synchronizing control
|
|
Storage Method
|
RAM+FLASH storage，No data loss fault
|
|
Power Source
|
AC 220/380W
|
AC 220/380V
|
|
Power
|
1KW
|
3KW
|
3KW
|
|
Air pressure
|
0.5-0.8Mpa
|
0.5-0.8Mpa
|
0.5-0.8Mpa
|
|
Machine Dimension(CM)
|
L90X W106 X H135
|
L130 X W130 X H130
|
L150 X W130X H135
|
|
Machine Weight
|
450KG
|
650KG
|
750KG
|
|
Standard configuration
|
According to the number of axles：fixture，Enameled dustproof cover，tension device，Nozzle
|
Optional Accessories
Based on the requirements of products, the following units can be selected for assembly: Tension unit , Twist unit , Air-pressure scissors, Simple cutter, Wire feeding unit, No.3 wire clamping unit, Bifilar winding, Alternate winding unit for two kinds of wires with different diameters, Bobbin loading and unloading unit, Bobbin position checking unit, Free position wire clamping unit, Wire vacuum unit, Over head taping unit, Security door, Security raster, Other optional items, etc. (Note: Over head taping unit and air-pressure scissors can not be used simultaneously.)

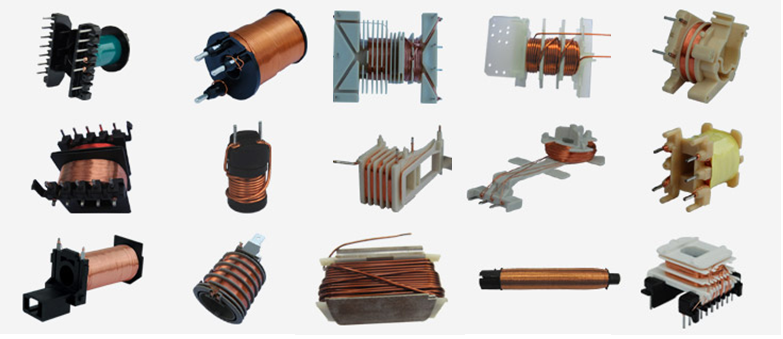

Coil samples
 Reserve the right to change the Specifications without prior notice
|
