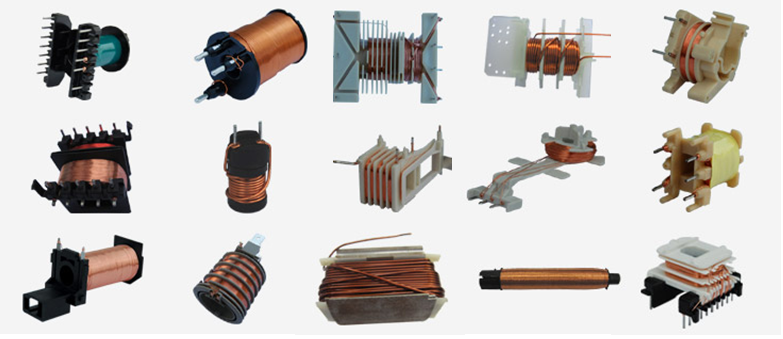

品名型号 Name type
|
八轴自动绕线机 DYA-608
8 axis automatic winding
|
十二轴自动绕线机DYA-612
12 axis automatic winding
|
十六轴自动绕线机DYA-616
16 axis automatic winding
|
|
主轴数量Winding Spindle
|
8轴
|
12轴
|
16轴
|
|
主轴间距spindle distance
|
42mm / 65mm / 77mm
|
60mm / 78mm
|
48mm / 60mm
|
|
主轴转速Winding Speed
|
11000 / 6000rpm
|
13000rpm
|
13000rpm
|
|
AC伺服电机 AC servo motor
|
主轴Spindle:750W X轴axis:400W ，Y轴axis:400W， Z轴axis:400W
|
主轴Spindle:1500W X轴axis:400W ，Y轴axis:400W， Z轴axis:400W
|
主轴Spindle:2200W X轴axis:400W ，Y轴axis:400W， Z轴axis:400W
|
|
轴转角度Spindle Angle
|
360∘/圈，設定單位 =0. 1∘ 360∘/ turn，Setting unit = 0.1∘
|
|
轴停精度Stop Accuracy
|
0.5
|
|
适用线径Wire Size
|
0.02mm-0.6mm
|
0.02mm-0.4mm
|
0.02mm-（0.4）0.6mm
|
|
最大转径Max. Winding Diameter
|
32mm / 55mm / 67mm
|
50mm / 68mm
|
38mm / 50mm
|
|
最大幅宽 Max. Spread Width
|
70mm
|
|
导针轴移动量Nozzle Move Distance
|
X Axis 80mm, Moving unit = 0.01mm; Y Axis 80mm, Moving unit = 0.01mm; Z Axis 60mm, Moving unit = 0.01mm
|
|
导针轴移动速度Wrapping speed
|
250mm/sec
|
|
导针缠脚角度Wrapping Angle
|
0° ,90°,120°
|
|
缠脚速度Wrapping speed
|
Max 150 rpm
|
|
控制方式Control System
|
CNC四轴 AC伺服马达同步控制 CNC 4 Axis AC servo motor synchronizing control
|
|
储存方式 Storage Method
|
RAM+FLASH储存,无数据丢失故障 RAM+FLASH storage，No data loss fault
|
|
电源 Power Source
|
AC 220/380W
|
AC 220/380V
|
|
电力Power
|
1KW
|
3KW
|
3KW
|
|
气压Air pressure
|
0.5-0.8Mpa
|
0.5-0.8Mpa
|
0.5-0.8Mpa
|
|
机器尺寸Machine Dimension(CM)
|
L90X W106 X H135
|
L130 X W130 X H130
|
L150 X W130X H135
|
|
机台重量Machine Weight
|
450KG
|
650KG
|
750KG
|
|
标准配置Standard configuration
|
按轴数配：夹具，线罩，张力器，导针 According to the number of axles：fixture，Enameled dustproof cover，tension device，Nozzle
|
